SpaceSense-Bench: A Large-Scale Multi-Modal Benchmark for Spacecraft Perception and Pose Estimation

Wu, Aodi; Zuo, Jianhong; Zhao, Zeyuan; Luo, Xubo; Wang, Ruisuo; Wan, Xue

SpaceSense-Bench: A Large-Scale Multi-Modal Benchmark for Spacecraft Perception and Pose Estimation

Aodi Wu^1,2, Jianhong Zuo³, Zeyuan Zhao^1,2, Xubo Luo^1,2, Ruisuo Wang², Xue Wan²

¹ University of Chinese Academy of Sciences
² Technology and Engineering Center for Space Utilization, Chinese Academy of Sciences
³ Nanjing University of Aeronautics and Astronautics

Paper GitHub

Dataset Benchmarks Citation

SpaceSense-Bench provides high-fidelity simulated observations for spacecraft perception, combining synchronized RGB images, depth maps, LiDAR point clouds, dense part labels, and accurate 6-DoF poses.

Abstract

Autonomous space operations such as on-orbit servicing and active debris removal demand robust part-level semantic understanding and precise relative navigation of target spacecraft, yet acquiring large-scale real data in orbit remains prohibitively expensive. Existing synthetic datasets, moreover, suffer from limited target diversity, single-modality sensing, and incomplete ground-truth annotations. To bridge these gaps, we present SpaceSense-Bench, a large-scale multi-modal benchmark for spacecraft perception encompassing 136 satellite models with approximately 70 GB of data. Each frame provides time-synchronized 1024×1024 RGB images, millimeter-precision depth maps, and 256-beam LiDAR point clouds, together with dense 7-class part-level semantic labels at both the pixel and point level as well as accurate 6-DoF pose ground truth. The dataset is generated through a high-fidelity space simulation built in Unreal Engine 5 and a fully automated pipeline covering data acquisition, multi-stage quality control, and conversion to mainstream formats. Comprehensive benchmarks on object detection, 2D semantic segmentation, RGB-LiDAR fusion 3D point cloud segmentation, monocular depth estimation, and orientation estimation reveal two key findings: (i) perceiving small-scale components such as thrusters and omni-antennas and generalizing to entirely unseen spacecraft in a zero-shot setting remain critical bottlenecks for current methods, and (ii) scaling up the number of training satellites yields substantial performance gains on novel targets, underscoring the value of large-scale, diverse datasets for space perception research.

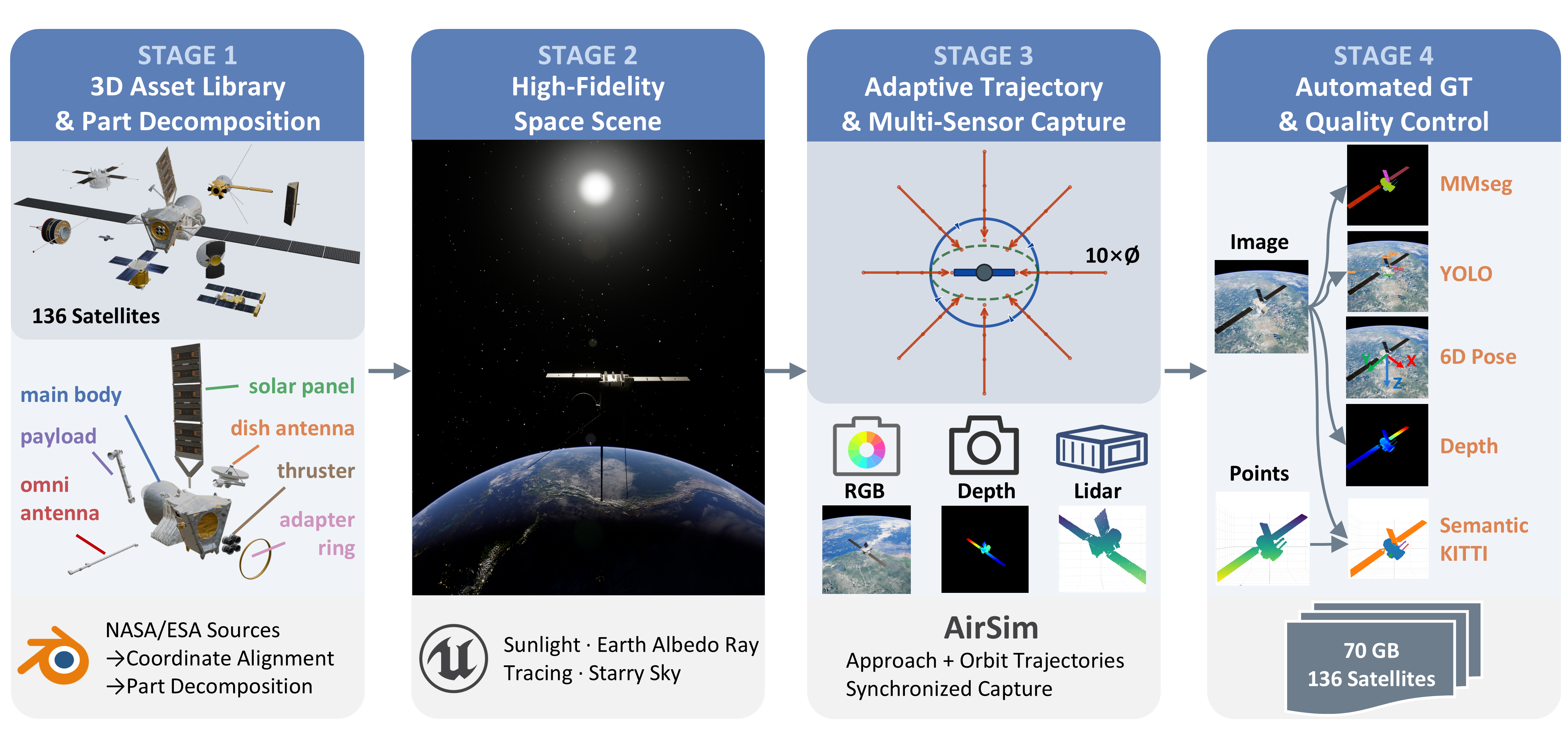

Data Generation Pipeline

The pipeline consists of four stages: (1) 3D asset library construction and part decomposition, (2) high-fidelity space scene setup in UE5, (3) adaptive trajectory planning and multi-sensor synchronized capture, and (4) automated ground-truth generation, quality control, and mainstream format export.

Dataset Samples

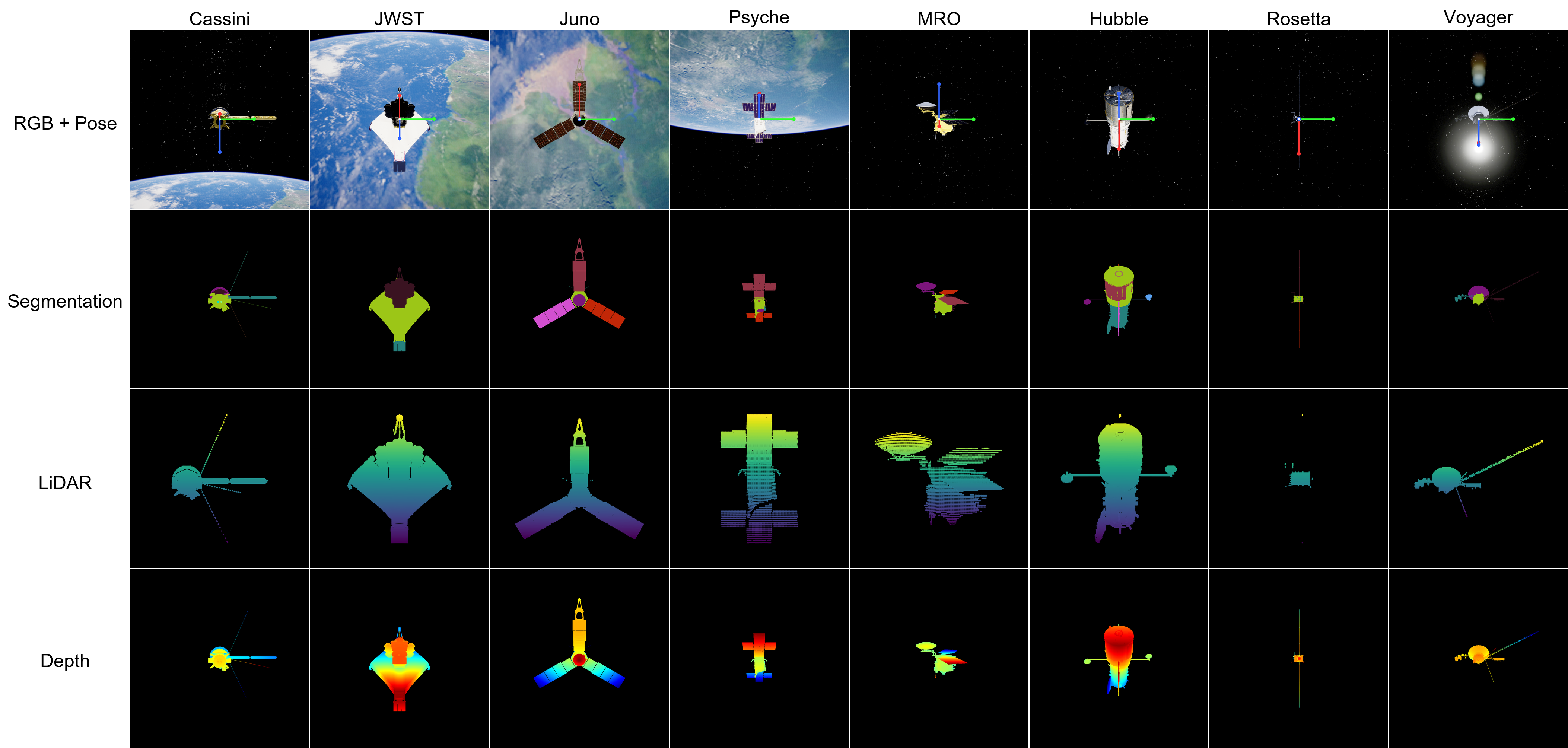

Multi-modal data samples from SpaceSense-Bench

Each column shows one satellite. From top to bottom: RGB image with 6-DoF pose axes overlay, seven-class semantic segmentation mask, LiDAR point cloud with per-point semantic labels, and colorized depth map.

Dataset Highlights

136

Satellite models with diverse geometries and structures

~70 GB

Large-scale benchmark data generated in a high-fidelity simulator

3 Modalities

1024×1024 RGB, millimeter-precision depth, and 256-beam LiDAR

7 Classes

Dense part-level semantic labels at both pixel and point levels

6-DoF

Accurate relative pose annotations for each frame

UE5 Pipeline

Automated generation, quality control, and conversion workflow

Visual Overview

136 diverse satellite models rendered in a high-fidelity space environment, with synchronized multi-modal data and dense part-level annotations.

The fully automated four-stage pipeline covers 3D asset construction, UE5 scene setup, trajectory-based capture, and ground-truth export.

Each frame provides an RGB image with 6-DoF pose overlay, 7-class semantic mask, LiDAR point cloud, and colorized depth map.

Benchmark Tasks and Findings

Supported Tasks

Object detection
2D semantic segmentation
RGB-LiDAR fusion 3D point cloud segmentation
Monocular depth estimation
Orientation estimation

Key Findings

Small components such as thrusters and omni-antennas remain difficult to perceive reliably.
Zero-shot transfer to completely unseen spacecraft is still a major open challenge.
Increasing the number and diversity of training satellites substantially improves generalization.

(a) 2D Semantic Segmentation — per-class IoU (%)

Model	Backbone	aAcc	mIoU	body	solar	dish	omni	payload	thruster	adapter
FCN	ResNet-50	99.16	41.30	68.1	82.9	30.7	1.0	19.0	12.8	16.1
DeepLabV3+	ResNet-50	99.19	43.70	68.1	83.2	38.2	1.0	21.5	17.7	20.2
SegFormer	MiT-B3	99.27	45.14	71.2	87.6	39.7	2.9	22.6	20.1	17.3
Mask2Former	Swin-B	99.28	45.63	71.4	88.6	26.3	1.9	19.1	24.6	33.3

(b) Object Detection (YOLO26) — per-class AP@0.5 (%)

Model	Scale	Prec.	mAP50	body	solar	dish	omni	payload	thruster	adapter
YOLO26	Nano	48.8	33.9	89.0	78.0	19.1	3.6	8.6	8.4	30.5
YOLO26	Small	53.4	37.1	89.4	80.4	19.7	7.9	8.8	10.8	42.8
YOLO26	Medium	54.6	39.0	91.3	82.3	21.6	6.4	10.0	16.5	45.1
YOLO26	Large	52.6	39.5	90.5	81.9	27.1	6.0	10.8	15.3	45.2
YOLO26	XLarge	56.1	41.3	91.0	82.5	23.7	8.0	9.1	23.3	51.6

(c) 3D Point Cloud Segmentation (PMFNet, RGB+LiDAR) — per-class IoU (%)

Model	Backbone	mAcc	mIoU	body	solar	dish	omni	payload	thruster	adapter
PMFNet	ResNet-34	57.5	42.4	68.8	85.8	51.7	8.9	21.9	25.2	34.2

(d) Monocular Depth Estimation (Depth Anything V2, zero-shot)

Model	Backbone	AbsRel↓	SqRel↓	RMSE(m)↓	RMSElog↓	δ<1.25↑	Spearman↑
DA-V2	ViT-S	0.0236	0.0317	0.747	0.0319	99.77%	0.555
DA-V2	ViT-B	0.0227	0.0304	0.746	0.0312	99.77%	0.578
DA-V2	ViT-L	0.0223	0.0304	0.757	0.0307	99.77%	0.602

(e) Orientation Estimation (Orient Anything, DINOv2-Large, zero-shot)

Model	Backbone	MAAE↓	Median↓	<10°↑	<20°↑	<30°↑	<45°↑
Orient-Any.	DINOv2-L	12.75°	10.56°	53.7%	78.2%	91.7%	98.8%

BibTeX

@article{wu2026spacesensebench,
  title={SpaceSense-Bench: A Large-Scale Multi-Modal Benchmark for Spacecraft Perception and Pose Estimation},
  author={Wu, Aodi and Zuo, Jianhong and Zhao, Zeyuan and Luo, Xubo and Wang, Ruisuo and Wan, Xue},
  year={2026},
  url={https://arxiv.org/abs/2603.09320}
}
